An AI agent pursues a goal on its author's behalf over minutes, hours, or days. It calls tools, writes files, keeps state between steps, and makes its own decisions within the guardrails it was given. At different moments it leverages a request/response service, a batch job, a serving endpoint, and other capabilities.
Running this type of workload safely requires a solution architecture of its own. In this article, we describe that solution as a blueprint to use for your agentic workload delivery needs.
A new workload class
The model is a stateless inference service. The harness turns it into an agent: it owns the loop, the memory, the context window, and the tool calls. The sandbox runtime decides what the agent may touch: which files, which binaries, which network endpoints. These three components have separate lifecycles, scale differently, and carry different security requirements, so we keep them separate.
Red Hat AI, the enterprise platform for any model and any agent across the hybrid cloud, is a natural host for that separation. We write this blueprint mainly from an Agent-as-a-Workload perspective. This means each agent is one sandboxed pod and one individual, independent value proposition. A second deployment pattern, Agent-as-a-Service, moves the loop out of the agent software into a shared runtime. Its adoption will follow business and operational needs, and we contrast the two later in this article.
We describe the solution blueprint as an open architecture of interchangeable components. Every component in Figure 1 is a role that several implementations can fill. AI accelerator vendors ship implementations for many of them; NVIDIA currently has the most visible set with NemoClaw, OpenShell, Nemotron, and CUDA-X. They appear in our blueprint on those merits, though they are not required. The architecture stands on open interfaces: an OpenAI-compatible inference access API and the open source Open Responses specification for models, Model Context Protocol (MCP) for tools, the agent-sandbox API for isolation, and SPIFFE (Secure Production Identity Framework For Everyone) for workload identity. This architecture gives each agent a verifiable, short-lived credential instead of a static API key.
We wrote this article for platform engineers and AI infrastructure teams who need to run autonomous agents safely on open, scalable AI platforms such as Red Hat AI. This article is not a tutorial for building an agent. Instead, it serves as a blueprint for operating agents as governed cloud-native workloads.
The solution architecture

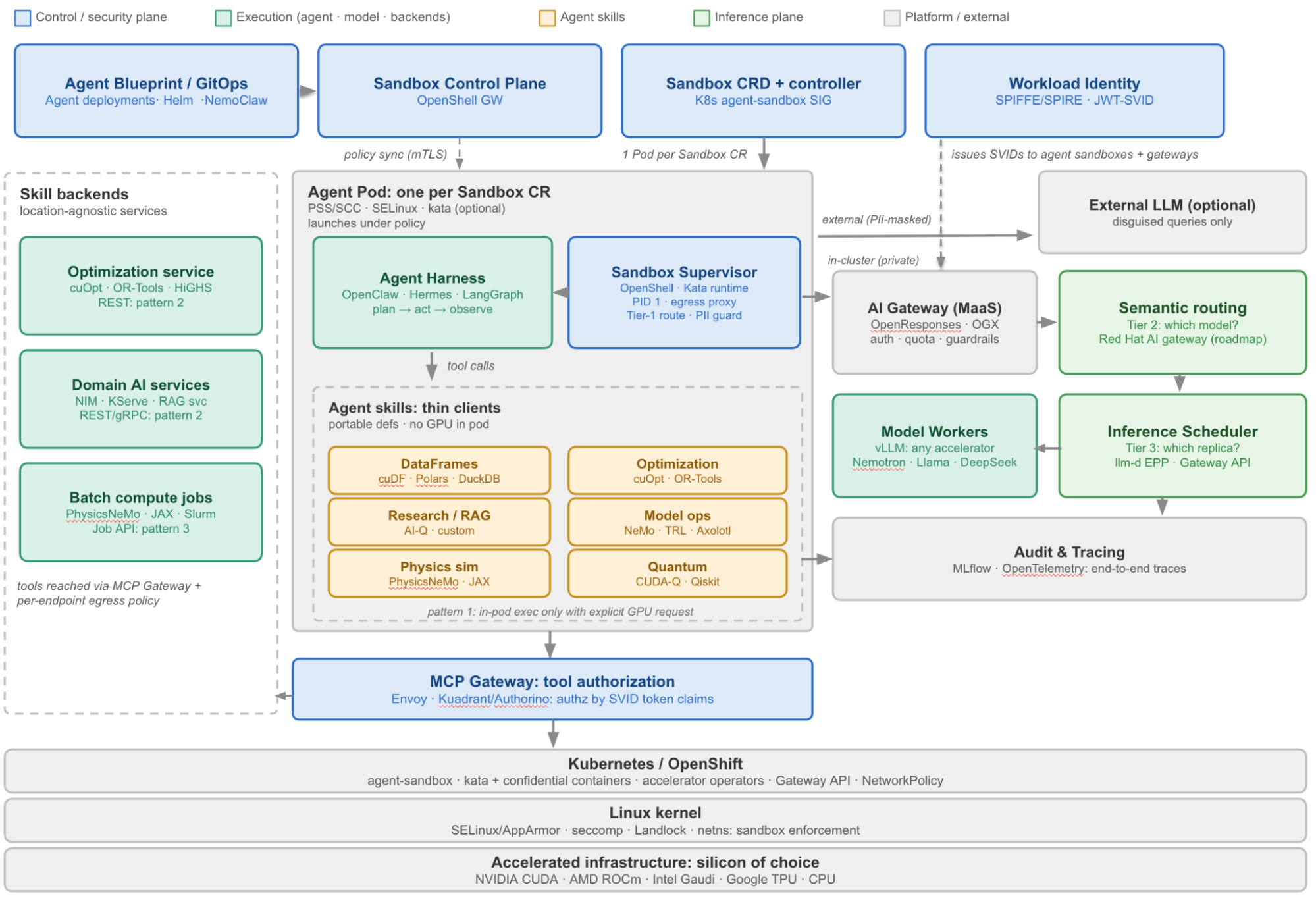

In Figure 1, we lay out the complete blueprint in a single view. The rest of the article walks you through the blueprint component by component. The figure reads as three horizontal bands with one checkpoint between them, and the legend colors mark the planes.
The control band across the top (blue) creates and governs agents. Read it from left to right to understand the lifecycle:
- An agent blueprint declares what each agent is made of.
- The sandbox control plane turns that blueprint into a
Sandboxresource. - A controller turns the resource into exactly one pod.
- The workload identity service issues every pod and gateway a verifiable credential.
The dashed arrows dropping out of this band are control traffic, and nothing else about the figure moves until they've done their work.
The middle band is where the magic happens. It contains three zones from left to right:
- Skill backends: These backends can run anywhere (represented by a dashed border because location is not a commitment).
- Agent pod: This pod hosts the agent, harness, supervisor, and thin skill clients.
- Inference plane: This plane serves models inside the cluster and contains the gateway, semantic routing, scheduler, and vLLM workers.
Two gray boxes on the right edge sit apart from that flow on purpose: an optional external large language model (LLM) that is reachable only with masked personally identifiable information (PII), and audit and tracing, where every hop in the architecture eventually lands.
The checkpoint between the bands is the MCP Gateway. It's drawn in control-plane blue because of its function: every tool call leaves the pod through this gateway, is authorized by token claims rather than by the model itself, and then reaches a skill backend.
The platform bars at the bottom carry everything above them: Red Hat OpenShift, the Linux kernel, and the silicon. The silicon bar lists several options deliberately because the architecture assumes no single vendor.
Components
Each solution component in and around Figure 1 has a role, a duty, and a set of implementation options. We list these options in Table 1. Maturity varies across these options, and we separate production-grade implementations from technical preview features later in this article (see Table 4).
| Solution components | Role/duty | Options |
|---|---|---|
| Agent blueprint / GitOps | Declare, deploy, version agents | Helm & GitOps · NemoClaw · OpenShell (planned) |
| Agent orchestration | Multi-agent coordination, discovery | A2A & signed AgentCards · AGNTCY Agent-Exchange |
| Sandbox runtime (supervisor) | Constrain agent process: files, network, syscalls | OpenShell (planned) · Kata & K8s agent-sandbox |
| Harness | Loop, memory, context, tool use | OpenClaw · Hermes Agent · LangChain Deep Agents · LangGraph · custom |
| Agentic loop runtime (Agent-as-a-Service) | Server-side loop: tool schema advertisement, execution, iteration, trace store | OGX (Responses API) · custom |
| Model | Reasoning service | Nemotron · Llama · gpt-oss · DeepSeek · Qwen · Kimi · GLM · Mistral |
| AI gateway (MaaS) | Auth, quota, OpenResponses/OpenAI API | OGX · LiteLLM · Red Hat AI gateway |
| Semantic routing | Pick best price/performant model | vLLM Semantic Router (upstream) · Red Hat AI gateway (roadmap) |
| Inference routing | Pick replica: KV cache, load | llm-d Router / EPP (Gateway API ext.), Praxis (Early) |
| Model workers | Token generation on accelerators | NIM / TensorRT-LLM · vLLM (CUDA/ROCm/XPU/CPU; TPU/Gaudi via plug-ins) |
| Skills | Domain capabilities as tools | CUDA-X (cuDF, cuOpt, and so on) · Polars · DuckDB · OR-Tools · JAX · Qiskit |
| Workload identity | Cryptographic agent identity | SPIFFE/SPIRE (JWT-SVID) |
| Tool governance | Authorize tool calls by token claims | MCP Gateway |
Agent packaging
The sandbox layer on Kubernetes consists of two pieces, with one on each side of the pod. Outside the pod sits a sandbox control plane, and inside the pod runs a supervisor process. In our blueprint OpenShell supplies both, and any implementation can fill either role because the contract between them is a Kubernetes custom resource.
The delivery path has two hops, with a custom resource in the middle. The control plane receives a request for an agent and writes a Sandbox custom resource; in our blueprint the OpenShell Gateway is the target implementation of this role as its Kubernetes path matures. The Agent Sandbox controller, a Kubernetes Special Interest Group (SIG) Apps subproject that implementations target, reconciles that resource into exactly one pod. One sandbox maps to one pod in the current API.
Inside the pod, the supervisor runs as PID 1 and starts before the agent does. It fetches policy from the control plane, installs the kernel filters, injects credentials, and then launches the harness as its child process. All egress leaves through the supervisor's proxy.
Policy enforcement splits along this same boundary. Kubernetes governs the pod from the outside using the following primitives:
- Pod security standards
- SELinux
NetworkPolicy- An optional Kata microVM through
RuntimeClass - Confidential containers beneath those layers
The supervisor governs the process from inside, regulating which binaries the process can run, which paths it can touch, and which endpoints it can reach. Stacked together, these layers provide three nested isolation rings: hardware or virtual machine (VM), pod, and process. Every primitive in all three rings relies on standard Linux and Kubernetes technologies, such as seccomp, Landlock, namespaces, SELinux, AppArmor, or Kata Containers. None of these primitives depend on a GPU vendor.
One discipline from our 12-Factor Agent article carries over directly: the agent workload is long-lived, but its sessions are not. Sessions remain ephemeral, while workflow state lives outside the pod in a durable data store, such as a database, an object store, or a durable-execution engine. Consequently, each new session starts with a clean context.

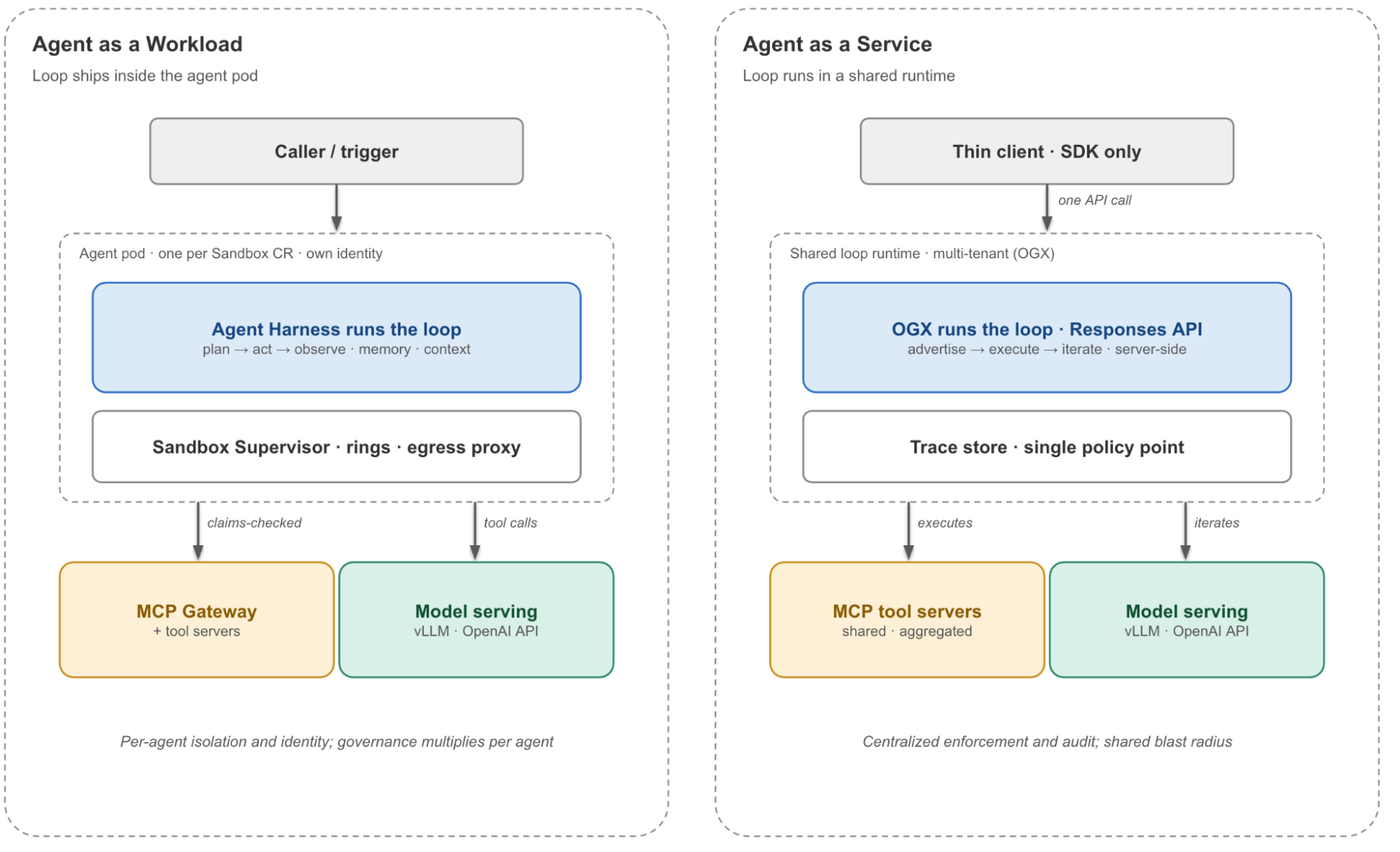

Agent-as-a-Service
Everything above assumes the loop ships inside the pod with the harness. Red Hat OpenShift AI 3.5 (Early Access at the time of writing) ships a second pattern through the open source OGX project (formerly Llama Stack): Agent-as-a-Service. Here the agentic loop runs in a shared runtime behind the Responses API. The client sends one request naming the goal and the MCP servers it requires. The loop runtime advertises the tool schemas to the model, executes the calls the model selects, feeds results back, and iterates to a final answer. Every step lands in a durable data store. Figure 2 contrasts the two patterns side by side.
The shared runtime inverts the pod pattern's trade-offs. It gains:
- Enforcement in one place: every action transits the loop runtime.
- One audit trail across all tenants.
- Credential isolation: clients never hold tool credentials.
It pays with:
- Shared blast radius: the loop service is a single point of failure.
- API mismatch: a request-scoped API fits long-running, goal-holding agents poorly.
- Blurred identity: per-agent identity survives only if the runtime propagates caller identity downstream, a gap SPIFFE does not yet address; the active standards work is in the IETF Workload Identity in Multi-System Environments (WIMSE) working group.
Most harnesses today are thick clients that own their loop, so adoption starts with operations teams standing up a shared runtime for request-scoped workloads: assistants, copilots, high-tenancy tools. Autonomous agents follow later.
The two patterns also compose. A sandboxed agent pod can delegate tool execution to a shared loop while keeping its own identity and rings, and the MCP Gateway's claims-based checks preserve per-agent policy inside the shared runtime. Duration and ownership pick the pattern, the same way you choose between a standard Deployment and a Knative service.
The governance
Governance in this blueprint consists of two mechanisms working as one system: workload identity establishes who the agent is, and tool authorization decides what that identity can do. Neither mechanism consults the model, and that's the point. While the agent's behavior can be manipulated, its credentials and permissions cannot.
Workload identity
SPIFFE/SPIRE gives each agent an automatically rotated cryptographic identity that is scoped to its namespace and service account. An authentication sidecar uses that identity for standards-based exchange with an identity provider such as Keycloak, using token exchange (RFC 8693) or the JWT bearer grant (RFC 7523), depending on the provider's support for externally issued tokens.
This process trades the identity for short-lived access tokens to downstream services, to help verify no static API key exists anywhere in the path. The payoff is clear: a leaked prompt or workspace file contains nothing durable to steal. Lifecycle tooling planned as part of Red Hat AI injects the sidecar and the identity plumbing at deploy time, with no agent code changes.
Tool governance
The MCP Gateway, built on Envoy with Kuadrant/Authorino for policy, fronts every MCP tool server behind a single endpoint. The agent is configured with one MCP_URL variable and sees an aggregated tool catalog. Token claims minted during the workload identity exchange then decide which tools the agent can actually call. The gateway never reads the prompt. A prompt-injection attack that forces the model to call an unauthorized tool fails at the infrastructure layer because authorization is not the model's decision to make.
What the gateway cannot stop is misuse of tools the agent is entitled to call, such as an injected instruction that exfiltrates data through a permitted endpoint. That risk belongs to the inference guardrails and egress policy described in the security model, which is why this checkpoint is one control among several rather than the whole defense. The same claims-based check covers every tool backend equally: a CUDA service, an OR-Tools container, or a Software-as-a-Service (SaaS) endpoint. MCP itself now lives under neutral governance, donated to the Agentic AI Foundation under the Linux Foundation in late 2025, with an authorization model that makes each tool server an OAuth 2.1 resource server, which is precisely the claims-checking this gateway enforces. This is the checkpoint from Figure 1 doing its job.
Inference routing

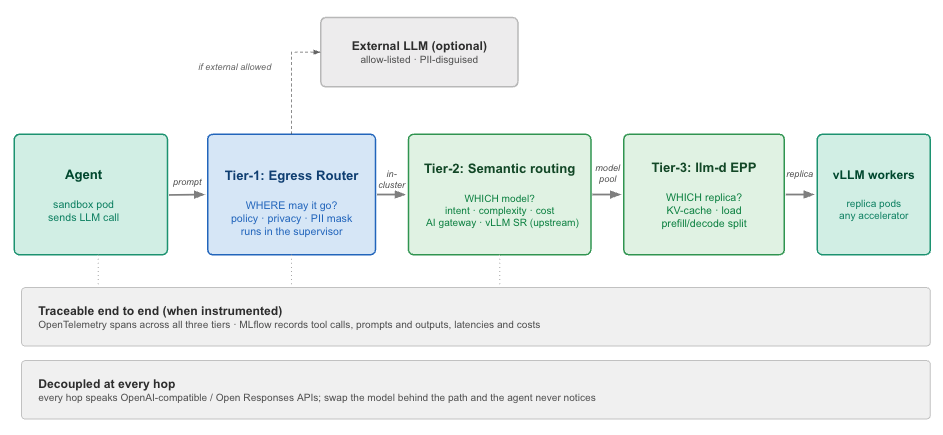

An inference request crosses three routers on its way to an AI accelerator. Three tiers exist because the three decisions have different owners: where a query may go is a security decision, which model serves it is a cost decision, and which replica executes it is an efficiency decision. Collapsing them into one router would put one component in charge of three concerns that change at different speeds and answer to different teams. Table 2 summarizes the three tiers, and Figure 3 follows one request across them.
| Tier | Component | Question it answers | Decision inputs |
|---|---|---|---|
| 1 | Sandbox egress router (in supervisor) | Where may this query go? | Policy, privacy class, PII masking, local vs. cloud |
| 2 | Semantic routing (vLLM Semantic Router or AI gateway) | Which model should serve it? | Intent and complexity classification, cost, reasoning on/off |
| 3 | llm-d Router (EPP or Gateway API InferenceeExtension) | Which replica serves it? | KV cache locality, load, prefill/decode disaggregation |
Tier 1 is the security tier and lives client-side in every sandbox, inside the supervisor. Confidential context never leaves the cluster, and anything routed to an external endpoint is disguised to protect personally identifiable information (PII) first. For in-cluster traffic, the same router directs requests to the AI gateway, so even local inference enters through the governed front door rather than reaching model endpoints directly. The masking is detection-and-redaction at the proxy, so residual false-negative leakage is the control's main failure mode and should be monitored.
Tier 2 is the cost tier: a lightweight classifier selects the cheapest model that can handle the request. The classifier itself adds latency and can misroute, so this tier is a measured trade-off rather than free capacity. The system needs a fallback that escalates to a more capable model on low-confidence or low-quality signals.
Tier 3 is the efficiency tier: once the model pool is fixed, llm-d's endpoint picker maximizes KV-cache hits and balances load across vLLM workers. Red Hat's integration work describes the split the same way: the semantic router picks the model, llm-d schedules replicas within the pool.
Two properties make this path operable, and they're the same two demands you would place on any request path in production. It is traceable end to end when instrumented: OpenTelemetry follows a request across all three tiers, and MLflow Tracing records tool calls, prompts and outputs, latencies and costs. MLflow Tracing itself is production-ready; the OpenTelemetry GenAI semantic conventions it emits are still in development, so plan for attribute changes rather than interface rewrites (see Table 4). And it's decoupled at every hop: every hop speaks OpenAI-compatible or OpenResponses APIs, so the model behind the path can change without the agent noticing.
Job placement
A common design mistake we see is assuming the skills execute inside the agent pod. This habit carries over from library-based development, where importing a capability means hosting its compute resources. In this blueprint, the skill components in Figure 1 represent definitions and thin clients: instruction files and API bindings rather than AI workloads. The distinction keeps the agent pod cheap and the blast radius small. Heavy compute tasks follow one of three patterns, and only pattern 1 runs in the pod: execute in place, call a service, or dispatch a job (Table 3).
| Pattern | Where compute runs | Enforcement point | Typical use |
|---|---|---|---|
| 1: In-pod | Inside the sandbox (the agent-sandbox SIG's Sandbox custom resource must request a GPU explicitly) | Kernel: seccomp, Landlock | Light DataFrame ETL (cuDF, Polars, DuckDB) |
| 2: Service call | Separate serving pods, any cluster, or SaaS | MCP Gateway & egress policy | Optimization REST (cuOpt, OR-Tools), RAG services |
| 3: Job dispatch | Batch jobs dispatched via the Kubernetes Job API or Slurm | Scoped role-based access control (RBAC) & admission | Physics simulation (PhysicsNeMo, JAX), quantum programs |
Pattern 2 serves as the default model at scale. For this reason, Figure 1 illustrates skill backends as a location-agnostic column outside the platform bars. The optimization service can be cuOpt on a GPU node or OR-Tools on CPU; the agent's client and the gateway policy do not change. Because authorization is endpoint-specific and claims-based, relocating or swapping a backend is a policy change rather than an architecture change. Pattern 3 needs the most attention in security review: an agent that can create Jobs can create arbitrary workloads, so its RBAC must be scoped tightly.
Getting this split right also sets the economics. Agent pods stay resource-efficient, dense, long-lived, and CPU-only in the common case, with the in-pod GPU of pattern 1 as the deliberate exception, while expensive accelerators sit in pooled backends that scale independently. The fleet then scales on two independent axes: agent count on cheap cores, accelerator capacity on utilization, and neither purchase forces the other.
To see the blueprint in action, follow one request end to end; every component named so far makes exactly one appearance.
A field-service agent receives a dispatch-optimization goal and initializes inside its sandboxed pod. The process then unfolds across the layers:
- The harness calls the optimization skill; the MCP Gateway checks the agent's token claims and forwards the call to the cuOpt or OR-Tools backend.
- The planning prompt carries customer data, so tier 1 keeps it on in-cluster models; a follow-up summarization request is low-risk, so tier 2 routes it to a small model and tier 3 picks the replica with the warmest cache.
- Every tool call, authorization decision, latency, and cost lands in the OpenTelemetry and MLflow trail.
At no point does the architecture depend on the model performing predictably; the path maintains the same shape even against a hostile model.
Security model
The distinctive threat with a long-running agent is that the workload itself can be turned against you. A prompt-injection attack can redirect its goals, a poisoned tool result can corrupt its memory, and a compromised skill dependency can act with everything the agent is allowed to reach. The design response is to assume the model's behavior cannot be trusted and to route every consequential action through enforcement the model cannot influence.

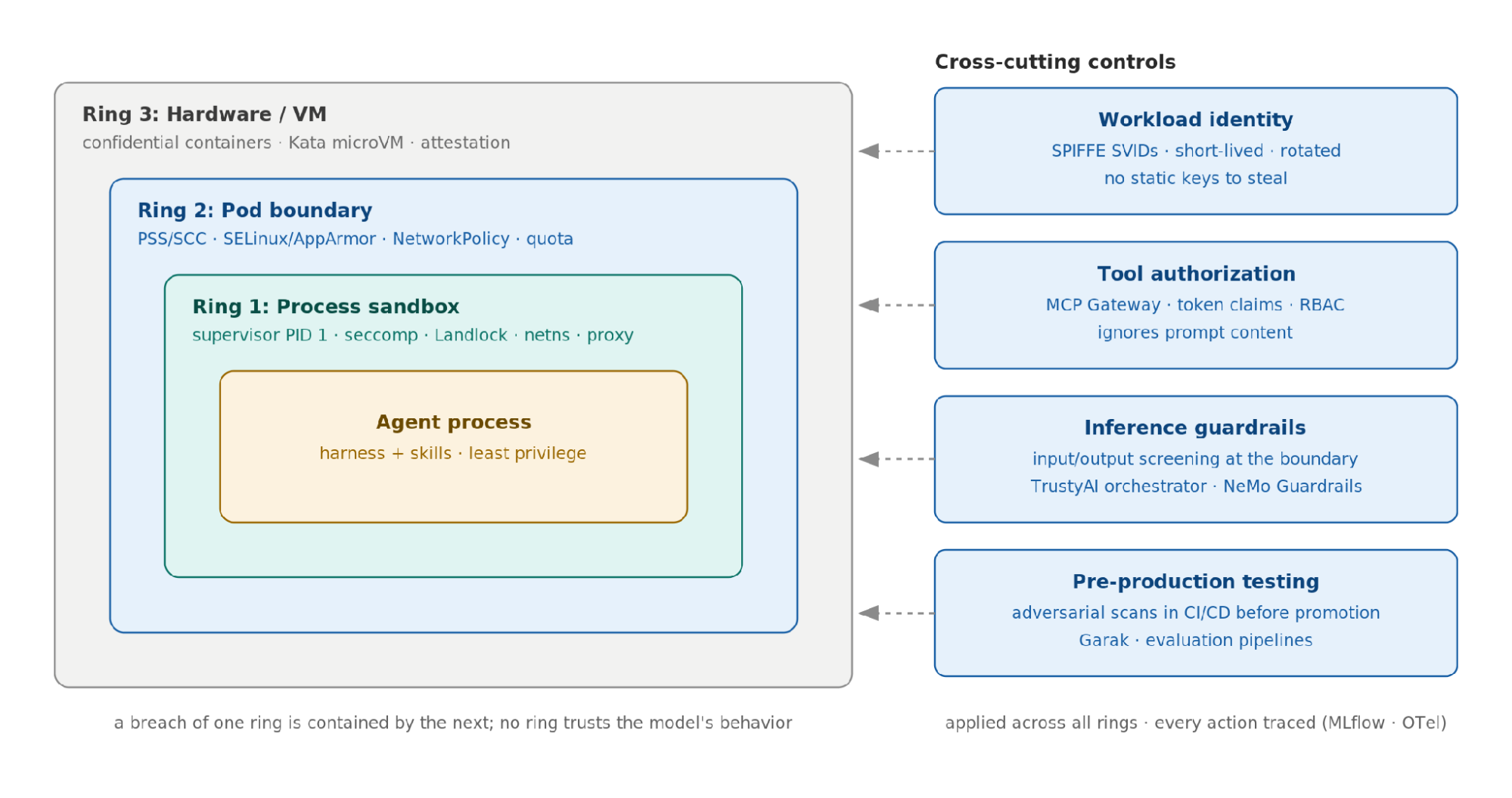

Figure 4 shows how the architecture layers that enforcement: three nested isolation rings around the agent process, and four cross-cutting controls that apply across all of them. The rings nest deliberately: each one assumes the ring inside it has already failed.
- Ring 1 (process): The sandbox supervisor enforces per-binary, per-path, per-endpoint policy via kernel primitives (
seccomp, Landlock, network namespaces). The agent cannot override this policy even if compromised because the policy lives outside the process it constrains. - Ring 2 (pod): Kubernetes pod security standards, SELinux, AppArmor,
NetworkPolicy, and resource quotas bound what the pod can reach and consume. Optionally, Kata Containers add a microVM boundary per sandbox. - Ring 3 (hardware): Confidential containers extend the trust boundary into silicon, protecting an agent's memory at runtime even if a neighboring workload or the node itself is breached, with attestation proving the sandbox runs the code it claims before any secret is released. This ring is the precondition for multi-tenant agent designs. Confidential computing on GPUs is now generally available on current accelerators but still carries runtime overhead, concentrated in host-to-device transfers, so treat it as the ring you plan for rather than the one you start with.
Four controls cut across all three rings, and they carry the same names in Figure 4:
- Workload identity: SPIFFE SVIDs replace static keys, so a leaked workspace contains nothing durable to steal.
- Tool authorization: The MCP Gateway authorizes every tool call from token claims, never from prompt content.
- Inference guardrails: Input and output screening at the inference boundary (TrustyAI Guardrails Orchestrator, NeMo Guardrails).
- Pre-production testing: Adversarial scanning in CI/CD pipelines catches jailbreak and injection weaknesses before an agent is promoted.
The rings and the controls answer different questions. The rings limit what a compromised agent can do; the controls reduce the chance it gets compromised and remove the rewards if it does. Containment economics follow from the single-sandbox, single-pod, and single-identity mapping: revoking, throttling, or terminating a misbehaving agent is a single targeted operation instead of an incident-wide hunt. The MLflow/OpenTelemetry trail turns every enforcement decision into reviewable evidence, and the posture holds unchanged at the edge as in the data center.
Vendor gravity and escape hatches
Vendor gravity in this stack lives in the libraries and the silicon, one layer below where most lock-in audits look. The license layer is clean: several core building blocks are open source under permissive terms (OpenShell and NemoClaw are Apache-2.0), so no single vendor holds exclusive rights to the architecture, while commercial packaging, NIM profiles, CUDA libraries, and certified support remain vendor-specific. What binds you, when something does, is an unported library or a proprietary interconnect. Here is our layer-by-layer audit:
- Interface-portable: The model layer is any open model behind the same API. The agent blueprint is YAML, portable by construction. The sandbox runtime enforces policies with stock Linux primitives, and Kata Containers plus the
agent-sandboxSIG covers the same three rings on any conformant cluster. The whole inference plane is portable: semantic routing and llm-d are vendor-neutral, and vLLM runs on CUDA, ROCm, XPU, and CPU directly, with TPU, Gaudi, and other accelerators supported via hardware plug-ins. The serving architecture therefore survives a full silicon swap untouched at the interface level. Achieving operational parity in performance, tuning, and accelerator coverage is engineering work you should plan for. - Sticky: The CUDA-X libraries are the real gravity: cuDF, cuOpt, and PhysicsNeMo are CUDA underneath, and NIM containers run only on NVIDIA silicon. Substitutes exist with trade-offs: Polars, DuckDB or Spark for DataFrames, OR-Tools or HiGHS for optimization, and JAX-based surrogates for physics. What the architecture controls is the price of the swap: skill backends sit behind neutral REST/MCP interfaces, so replacing cuOpt with OR-Tools is an endpoint and policy change rather than a redesign.
The rule we enforce throughout the blueprint: every vendor component sits behind a neutral interface. That means OpenAI-compatible and OpenResponses for models, MCP for tools, REST for skill backends, the agent-sandbox API for isolation, and SPIFFE for identity. Under that rule, vendors compete on price/performance per component instead of owning your architecture, and procurement decisions stay reversible for the lifetime of the deployment. NVIDIA then becomes a per-component choice rather than a structural dependency.
Maturity and open items
Not everything in Figure 1 is equally ready. In Table 4, we separate the layers you can run in production today from the layers to treat as preview, where interfaces will still change. The reading rule: build your base decisions on the mature column, adopt from the preview column behind pinned versions and feature gates, and revisit at each release.
And a blueprint earns trust by stating what it does not solve yet. Note that each of the following open items belongs to a different discipline, which is itself the message: closing them takes products, standards bodies, researchers, and operators, and no single vendor closes the list.
- Human approval workflows for high-risk actions still need product-level patterns.
- Multi-agent coordination standards are converging (A2A reached 1.0) but interoperability in practice is not settled.
- Agent memory poisoning remains an open research and engineering problem.
- Sandbox policy authoring is operationally complex at fleet scale.
- Cost modeling for long-running agents needs real workload data.
- Confidential computing protects memory at runtime; it does not stop prompt-layer or tool-layer compromise.
Closing notes
In this article we walked the agentic stack inside out. We defined the agent as model, harness, and sandbox runtime, and laid the solution out in Figure 1 as interchangeable components behind open interfaces.
Then we followed it through delivery: an agent packaged as one sandboxed pod, or delegating its loop to a shared runtime where the workload profile fits, governed by workload identity and claims-checked tool calls, served through three routing tiers to vLLM workers, with skill compute placed in governed backends and a defense-in-depth security model wrapping it all.
The result is a blueprint you can begin assembling today from open source parts, treating several layers as preview, with vendor choices that stay reversible at the interfaces you kept neutral. Managed sandbox services offer parts of this blueprint as SaaS; what the open architecture adds is that the isolation, identity, and governance layers stay on infrastructure you control, with interfaces you can take to any conformant cluster. We verified the component landscape in this article as of July 2026; in a stack where several layers are pre-1.0, check the linked projects for current status before you build.
The agentic stack is beginning to look like the microservices stack one abstraction up: blueprints instead of charts, sandboxes instead of containers, inference routing instead of service mesh, skills instead of client libraries, and share d loop runtimes instead of application servers. The same disciplines apply: least privilege, declarative policy, separate control and data planes, pooled expensive resources behind schedulers, and keeping the interfaces under your own control. The difference is that this workload makes its own decisions for days at a time. The stack above is what it takes to let it do that safely, observably, portably, and at a cost per task you can measure.
Where to go next
Architecture arguments are easier to judge with running code, so we are rebuilding our Telecom AI Experiments workloads on this blueprint at agent-school; the 101 NOC Assistant runs offline on a laptop in two commands. To run the blueprint on your own infrastructure, we recommend exploring Red Hat AI, Red Hat OpenShift AI, and Red Hat AI Inference Server.
